“Unrecognized Video Card” error on Mac

Published on March 11, 2024March 12, 2024 by BluebellFloraLeave a comment

If you experience this error message at the main menu in The Sims 4 when launching the game, don’t panic! It’s nothing to worry about and won’t stop you playing the game.

It’s simply because EA haven’t updated the GraphicsCards.sgr file in the main game to incorporate your GPU. You can do one of two things to stop the message from appearing:

Download the updated GraphicsCards.sgr file I have uploaded here
Open your Downloads folder, right click on the downloaded file and select Copy
Open the ConfigOverride folder in Documents > Electronic Arts > The Sims 4. Right click in the folder and select Paste item. That’s it.

Or:

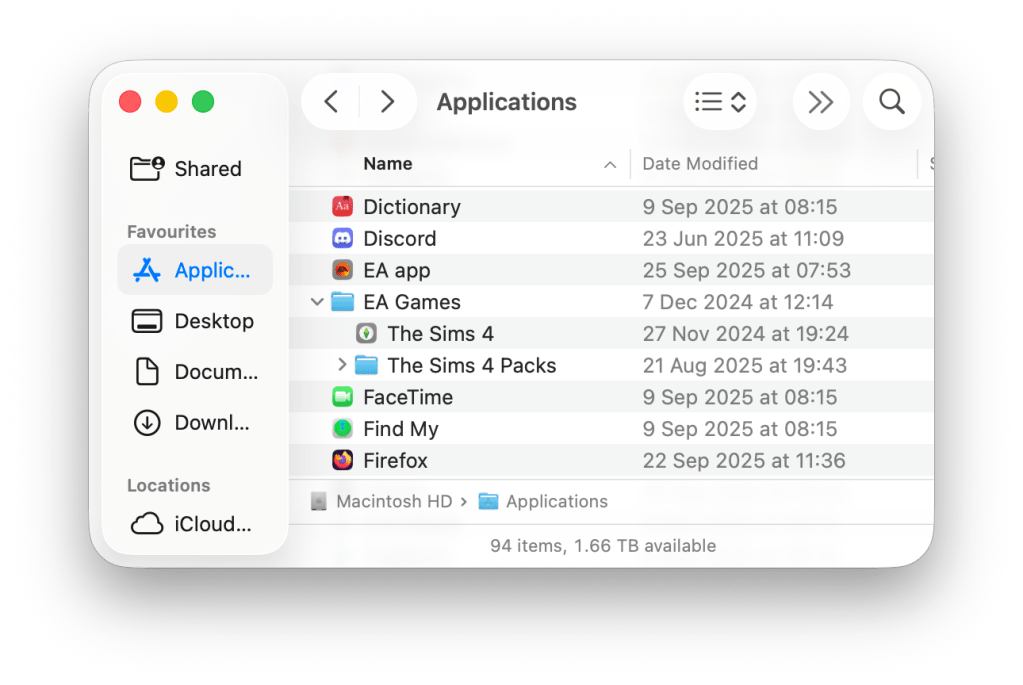

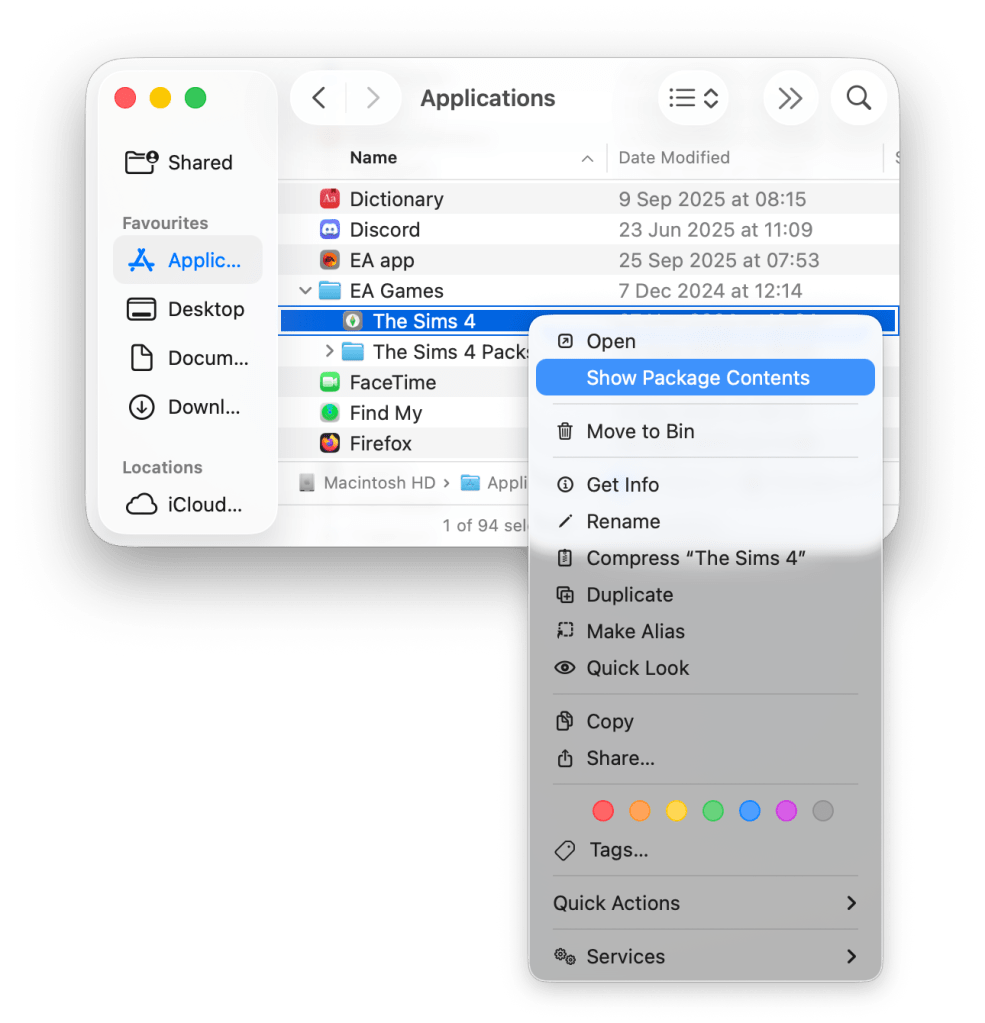

Right click on the Sims 4 base game, wherever you have it installed (Applications folder by default) and select Show package contents

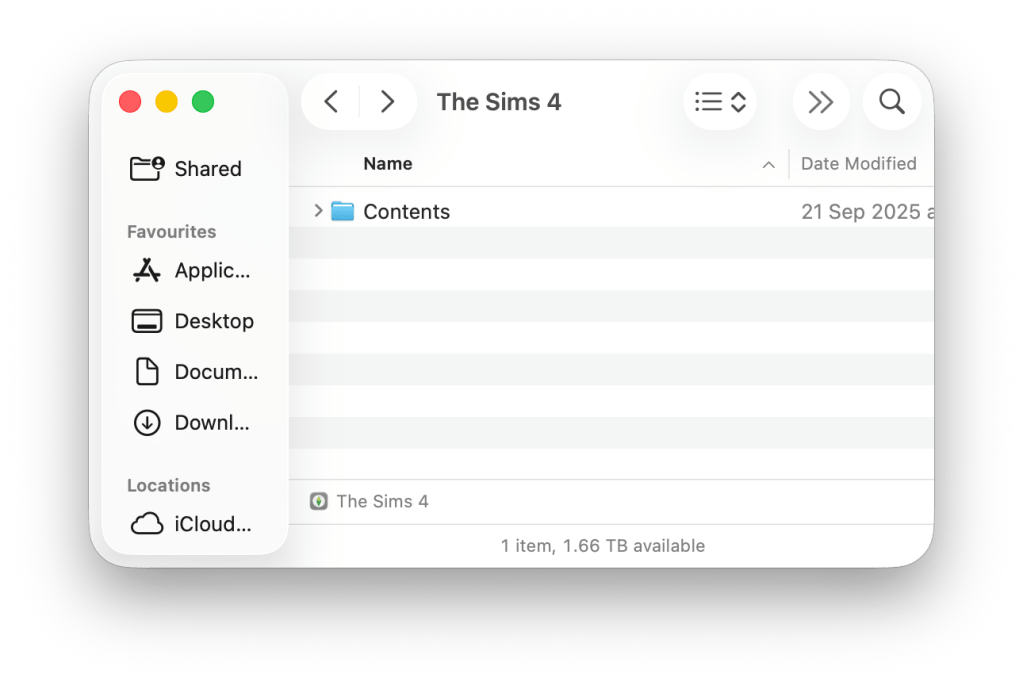

Navigate to Contents > Resources
Right click on the GraphicsCards.sgr file and select Copy
Open the ConfigOverride folder in Documents > Electronic Arts > The Sims 4. Right click in the folder and select Paste item.
Open the GraphicsCards.sgr file you have pasted into the ConfigOverride folder. If prompted to choose an Application in Finder, choose TextEdit.
Scroll all the way down to the bottom of the file to the Apple bit and paste the following lines:

vendor "Apple" 0x106B
    card 0x0000 "Apple M3" $cardLevelUber $resolutionHigh $cardLevelUber
    card 0x0000 "Apple M3 Max" $cardLevelUber $resolutionHigh $cardLevelUber
    card 0x0000 "Apple M3 Pro" $cardLevelUber $resolutionHigh $cardLevelUber
    card 0x0000 "Apple M2" $cardLevelUber $resolutionHigh $cardLevelUber
    card 0x0000 "Apple M2 Max" $cardLevelUber $resolutionHigh $cardLevelUber
    card 0x0000 "Apple M2 Pro" $cardLevelUber $resolutionHigh $cardLevelUber
    card 0x0000 "Apple M1" $cardLevelUber $resolutionHigh $cardLevelUber
    card 0x0000 "Apple M1 Max" $cardLevelUber $resolutionHigh $cardLevelUber
    card 0x0000 "Apple M1 Pro" $cardLevelUber $resolutionHigh $cardLevelUber
    card 0x0000 "Apple A12Z" $cardLevelUber $resolutionHigh
end

Close the GraphicsCards.sgr file, saving if prompted (you shouldn’t be)

It’s important to copy and paste the GraphicsCards.sgr file. Do not drag it to the ConfigOverride folder as it will only create an alias of the original file.

The lines above add all Apple Silicon models to the .sgr file. I think all previous Intel model Macs are covered but if you’re on an Intel Mac and getting the error, jump into my Discord support server for help.

This is not a Mod in the typical sense, it does not need to be in your Mods folder, it is a simple addition to a simple text file. For more info on the ConfigOverride folder see this article.

Choosing an external hard drive for your game

Published on November 26, 2023 by BluebellFlora2 Comments

Quick guide on choosing a decent external drive to install The Sims 4 on and using for the Sims 4 or Electronic Arts folder if creating a symlink. The drive and connection you use is REALLY important. It needs to be as fast as possible otherwise you will experience endless loading and horrible in-game lagging, if you get that far. I am an external drive junkie, I have loads of them, and have experimented with a ton of different drives over the years. The current one I have settled on, and is perfect with loading speeds and connection, is the Samsung T7. I love how small and light it is too.

What NOT to use:

HDD (Hard Disk Drive). These are the old style drives which manufacturers have gradually moved away from. HDDs have a spinning disk which the computer reads data from and writes data to (for example, the operating system reads the game data to load it and writes data when applying a patch. Similarly, the game reads the save file to load the save and then writes to the save file when you save). Think of it like a record deck only much smaller and only reading, not writing. HDDs are still available to buy and are typically very cheap now. They come in two speeds – 5400rpm and 7200rpm. Neither of which are fast by today’s standards. They have a higher rate of failure and can be easily damaged if dropped as they have physical moving parts. If the product description does not specifically state SSD storage then the drive will most likely be a HDD. Do not use one of these.
A USB-A connection
An adapter cable from USB-C or Thunderbolt (Mac) to USB-A (external drive) to enable a connection. Adapter cables are great and fix the physical problem of connecting an incompatible drive to a computer but are only as fast as the original connection.

What to use:

SSD (Solid-State Drive) or a Flash storage thumb drive with a direct USB-C/Thunderbolt connection and at least USB 3.2 speed with read/write speeds of around 1,050/1,000 MB/s.
External drive “Transfer” speed and “read/write” speed should not be confused when it comes to running a game through an external drive. The read/write speed is the drive spec. you should be looking at.

Why do I want to use an external drive?

Pro – to install the game externally so it doesn’t fill up internal disk space on your Mac.
Pro – if you have two or more Macs running the game through the same Origin/EA ID you can install the game on one external drive and switch it between Macs rather then install the game on each Mac.
Pro – by creating a symlink you can store your Sims 4 or Electronic Arts folder on the external drive, bypassing the default location in your Documents folder. Especially useful if you have a lot of CC/Mods taking up masses of precious memory and a ton of save files.
Con – good quality fast SSDs are still a little pricey.
Con – cannot play the game unless you have the external drive with you.

Best practice and how to use:

Always wait for your Mac to fully mount the drive before opening Origin. You should see it either on the desktop or in the Finder sidebar depending on your Mac setup.
Once mounted, open the drive and navigate to the deepest level folder to make sure the operating system has fully loaded the contents. This is especially important on slow drives.
- If using for your game installation, open the Sims 4 Packs folder and then several pack folders and subfolders.
- If using for your Sims 4/Electronic Arts folder, open the saves folder and then the Mods folder (if you use Mods) and a subfolder.
Never open Origin without having the drive plugged in. It will default to the internal drive location and will require you to set up the external drive location again in Origin > Installs & Saves > Game library location.
If the symlink is setup for the Sims 4/Electronic Arts folder, never launch the game without the external drive plugged in. You will get the game is already running error message.
Once you’ve found a drive you think will work, always do a little research into the read/write speeds of the drive. If the specs aren’t immediately apparent in the product description you should google the drive and “read/write speeds” to get a proper idea. If the drive is unbelievably cheap the chances are that it’s going to be pretty slow.
